Oxyset Mobile Brazing System

The Oxyset is a lightweight, portable welding & brazing system for use with disposable gas cylinders. Complete with an easy-carry cylinder stand, the Oxyset is ideal for highly-mobile tradespeople or for working in hard-to-reach areas.

A mixture between oxygen and gas fuel is ideal in many applications due to its adjustable heat output, this kit is suitable for a variety of applications including: welding, brazing, silver soldering and heating. The Oxyset mobile brazing kit includes the following items: Welding Torch, 2 x Check valves (torch end), Oxygen regulator with contents & pressure out gauge, MAP-ProTM regulator with outlet gauge, 2 x Nozzles, Flint sparker, Spanner and 6.5ft Twin hose assembly.

Application: silver soldering, brazing, welding and heating

*Map-Pro and Oxygen Cylinders shown for display purposes. Not included with kit.

SKU1811168
ApplicationHeating, Soldering, Brazing, Cutting
Barcode9320688217516
Fuel TypeDesigned for use with MAP-Pro and Oxygen (sold separately)
Hose Connection1 x Blue oxygen hose (6.5ft length, 1/8” ID, CGA20)
1 x Orange gas hose (6.5ft length, 1/8” ID, CGA21)
Nozzle Sizes3/32” and 5/64”
Regulator Connections1 x Blue oxygen regulator with 2 gauges (inlet thread is M12x1, outlet thread is CGA20)
1 x Orange MAP//Pro (Propylene) regulator with 1 gauge (inlet thread is CGA600, outlet thread is CGA21)
Dimensions 17″ H x 10″ W
Net Weight101 oz
Kit IncludesWelding torch, 6.5ft twin hose, 2 x check valves, Oxygen and Fuel Gas regulators, 2 x Nozzles, Flint sparker, spanner and caddy.
Max. Flame Temperature~5400°F



  • Designed for HVAC and Plumbing contractors
  • Compact, lightweight & ultra-portable
  • 2 Nozzle sizes included
  • For use with MAP-Pro & Oxygen cylinders, sold separately

The Oxyset is designed for use with our Ambro Controls 1L Oxygen cylinder and any Map-Pro cylinder with a CGA600 thread connection.

Yes, we do have spare parts for the following items: Weding Nozzles, Twin Hose Assembly, Oxygen Regulator & Fuel Gas Regulator. You can view them here.

Visit our Where to Buy page and search by state. Not all branch locations have the Oxyset at all times. We recommend calling ahead to check availability or to ask them to bring products in for you.

The Oxyset uses a mixture of Map-Pro and oxygen gases. The ratio of the mixture affects the flame temperature, but when the correct mixture occurs so that a blue flame is present the flame will have a temperature of up to 5400°F (3000°C).

THE OXYSET DIFFERENCE

OXYSET VS. COMPETITOR

Ambro Controls Oxyset - set up with cylinders

OXYSET

Oxyset competitor set up with cylinders is significantly larger and heavier than the Oxyset.

COMPETITOR

Ambro Controls Oxyset - set up with cylinders

OXYSET

Oxyset competitor set up with cylinders is significantly larger and heavier than the Oxyset.

COMPETITOR

Ambro Controls Oxyset - set up with cylinders

OXYSET

Oxyset competitor set up with cylinders weight 17kg, making it almost 3 times more heavier than the Oxyset.

COMPETITOR

Ambro Controls Oxyset - set up with cylinders

OXYSET

Oxyset competitor set up with cylinders is significantly larger and heavier than the Oxyset.

COMPETITOR

Ambro Controls Oxyset - set up with cylinders

OXYSET

Oxyset competitor set up with cylinders is significantly larger and heavier than the Oxyset.

COMPETITOR

Ambro Controls Oxyset - set up with cylinders

OXYSET

Oxyset competitor set up with cylinders is significantly larger and heavier than the Oxyset.

COMPETITOR

Ambro Controls Oxyset - set up with cylinders

OXYSET

Oxyset competitor set up with cylinders weight 17kg, making it almost 3 times more heavier than the Oxyset.

COMPETITOR

Ambro Controls Oxyset - set up with cylinders

OXYSET

Oxyset competitor set up with cylinders is significantly larger and heavier than the Oxyset.

COMPETITOR

RELATED PRODUCTS

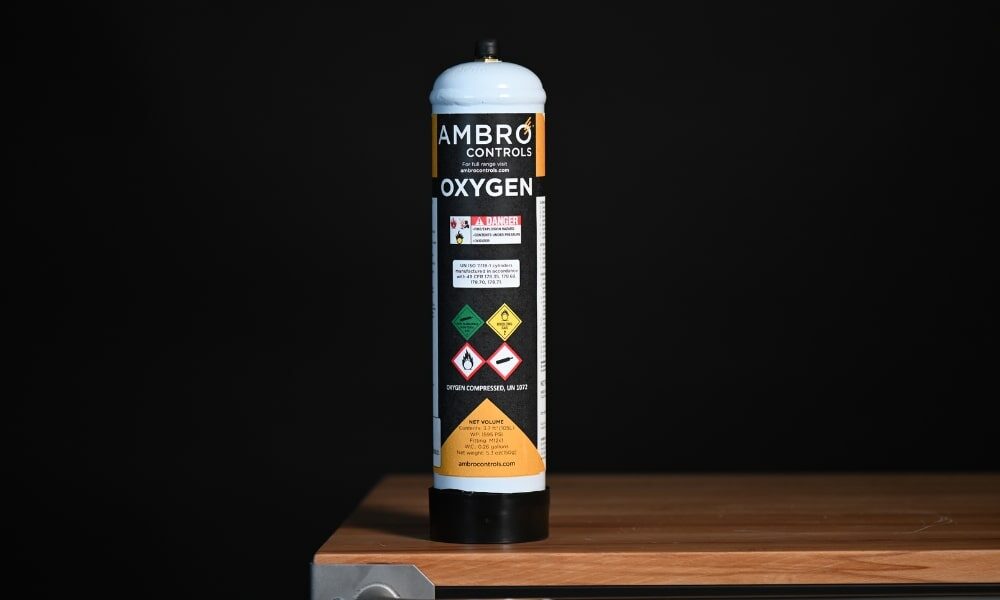

Ambro Controls 1L Oxygen Cylinder (1811323) on table
